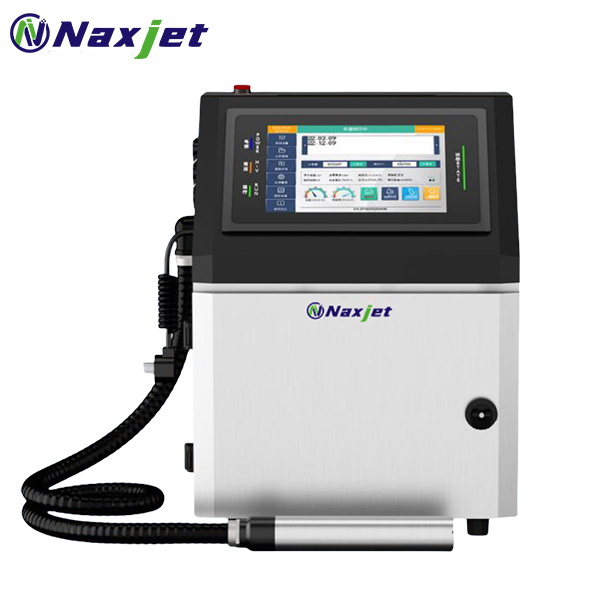

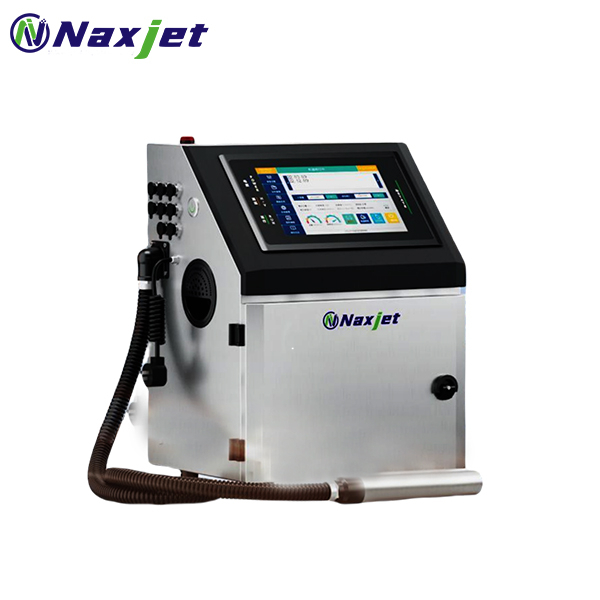

The S760 Continuous Inkjet Printer delivers powerful coding performance, supporting high-speed multi-line printing, as well as barcodes and variable QR codes. With its exceptional flexibility and reliable operation, it easily adapts to a wide range of production environments and industrial coding applications.

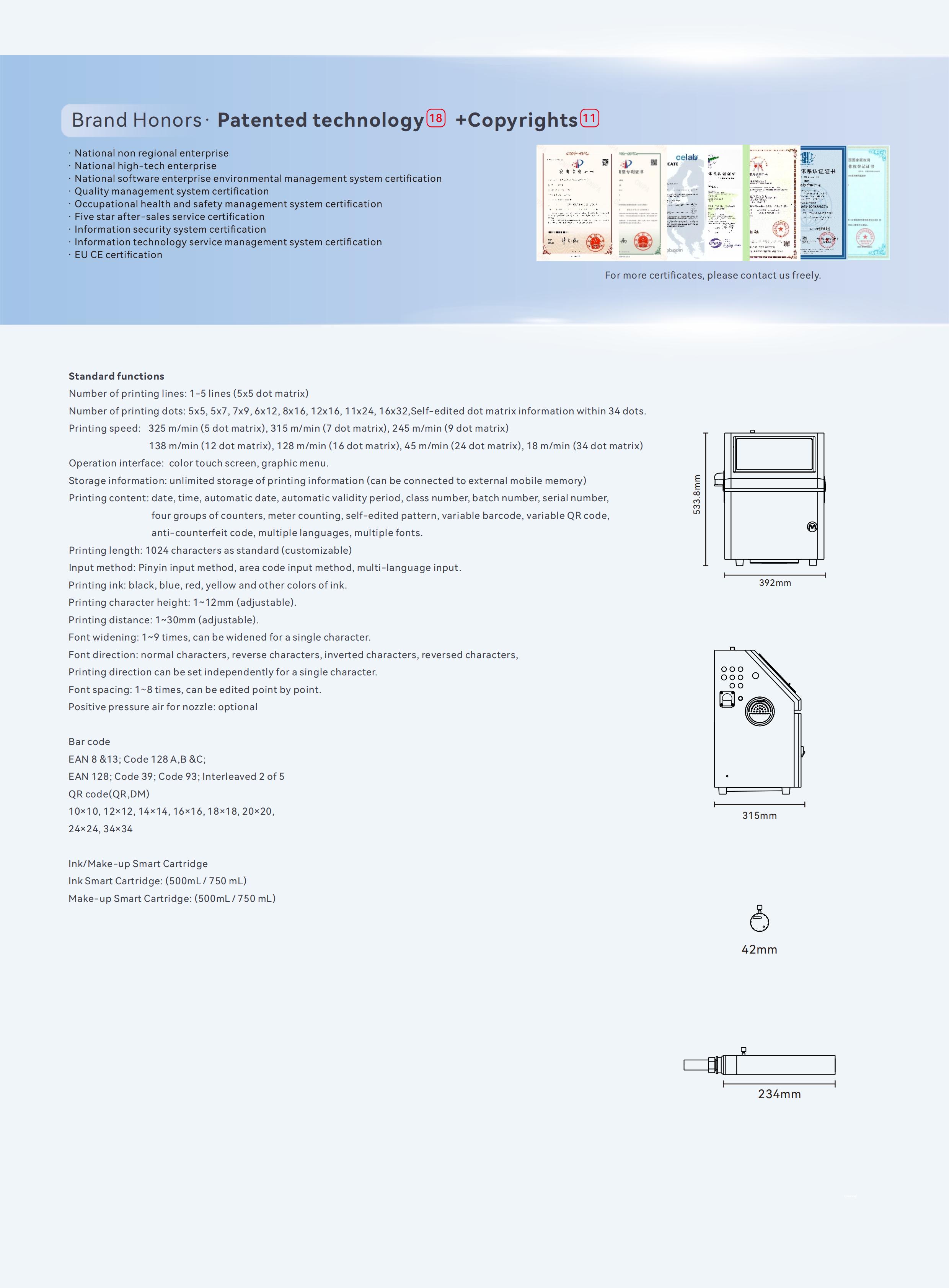

Number of printing lines | 1-5 lines (5x5 dot matrix) |
Number of printing dots | 5x5, 5x7, 7x9, 6x12, 8x16, 12x16, 11x24, 16x32, Self-edited dot matrix information within 34 dots. |
Printing speed | 325 m/min(5dot matrix) 315 m/min(7 dot matrix) 245 m/min(9 dot matrix) 138 m/min(12 dot matrix) 93 m/min(16 dot matrix) 37 m/min(24 dot matrix) 18 m/min(34 dot matrix) |
Operation interface | Color touch screen, graphic menu. |
Storage information | Unlimited storage of printing information (Can be connected to external mobile memory) |
Printing content | Date, Time, Automatic date, Automatic validity period, Class number, Batch number, Serial number, Four groups of counters, Meter counting, Self-edited pattern, Variable barcode, Variable QR code, Anti-counterfeit code, Multiple languages, Multiple fonts. |
Bar code | EAN 8&13, Code 128 A,B &C EAN 128, Code 39, Code93, Interleaved 2 of 5 |
QR CODE (QR,DM) | 10x10, 12x12, 14x14, 16x16, 18x18, 20x20, 24x24, 34x34 |
Printing length | 1024 characters as standard (customizable) |
Input method | Pinyin input method, area code input method, multi-language input. |
Printing ink | Black, Blue, Red, Yellow, and Other Colors of Ink. |
Printing character height | 1-12mm (adjustable) |
Printing distance | 1-30mm (adjustable) |
Font widening | 1~9 times, can be widened for a single character. |
Font direction | Normal characters, Reverse characters, Inverted characters, Reversed characters Printing direction can be set independently for a single character. |
Font spacing | 1-8 times, can be edited point by point. |
Temperature | -10℃~45℃ 304 stainless steel case |
Humidity | 10-95% non-condensing |
Standards | EU CE certification |
