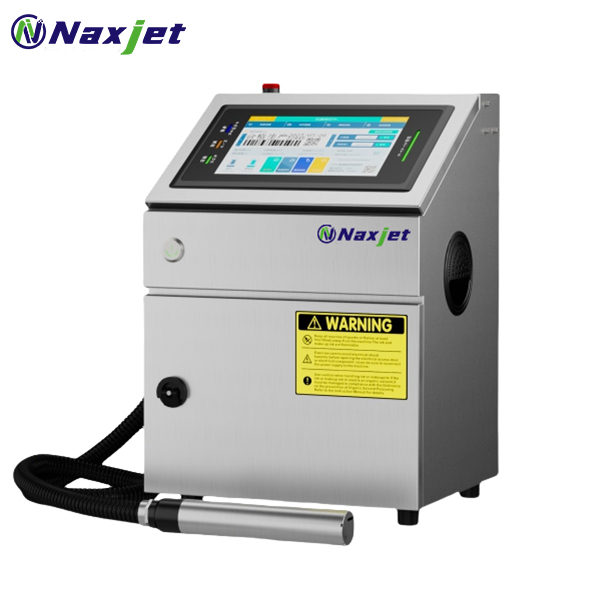

The Naxjet S800 continuous inkjet printer is an industrial-grade small character inkjet printer designed specifically for medium- and high-speed production lines. It facilitates the inkjet printing needs of various food, packaging, beverage, and pharmaceutical manufacturers to meet their production line coding requirements with simple operation, low maintenance costs, superior print quality, and higher printing speed.
This industrial inkjet printer coding machine supports 1–5 lines of printing with speeds up to 6.3 m/s, delivering clear and reliable codes even on high-speed manufacturing lines.
Supports dates, batch numbers, serial numbers, meter counts, plus barcodes, QR codes, and anti-counterfeiting codes including EAN-8, EAN-13, Code128, QR, and DataMatrix.
Print production dates, batch numbers, serial numbers, meter counts, and variable data with adjustable character height (1–15 mm) and customizable fonts, graphics, and symbols.
This industrial coding machine uses non-contact inkjet printing technology, suitable for plastic, metal, glass, paper, cartons, and packaging materials, widely used in food, beverage, cable, chemical, and building materials industries.
Equipped with a multi-language interface and customizable configurations such as printhead cable length, extended printing content, and production line integration, making it a reliable industrial coding solution worldwide.

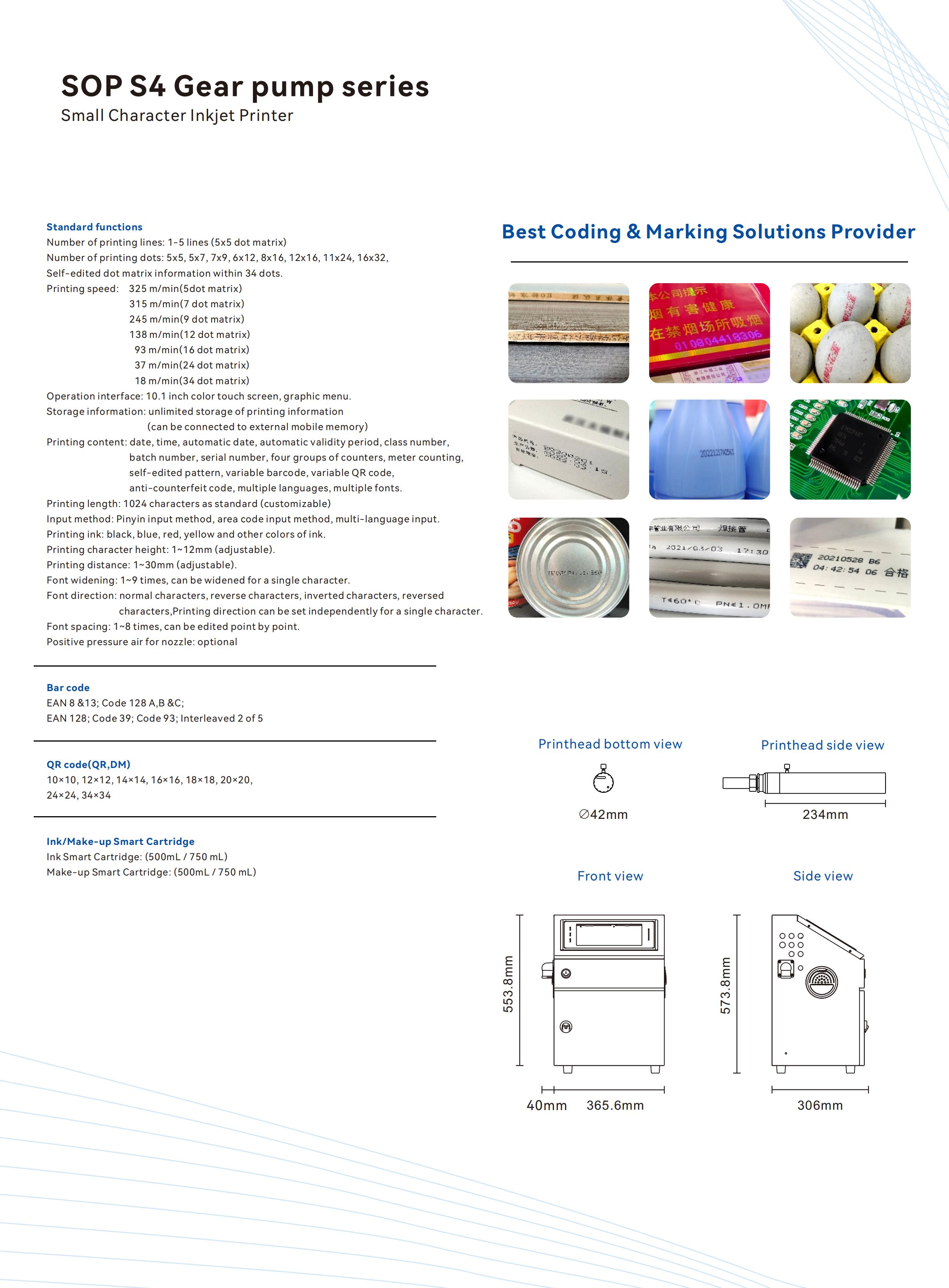

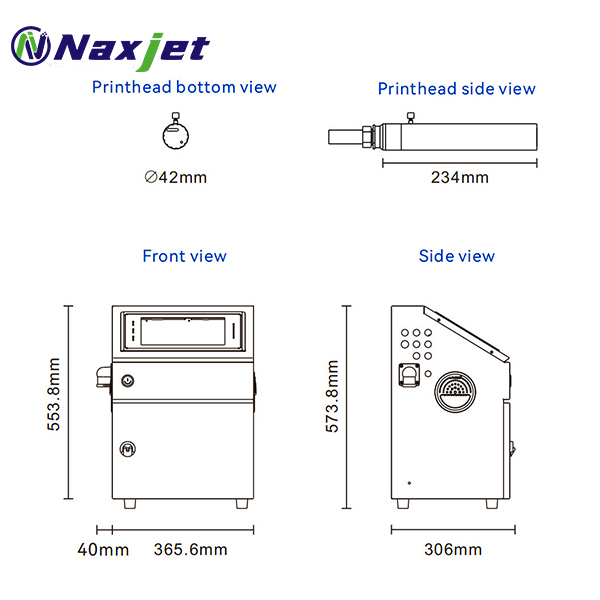

Specifications | 535.8 x 306 x 405.6mm |
Weight | 22kg |
Voltage | 85-265 VAC, 50-60Hz |
Printing speed | 325 m/min(5dot matrix) 315 m/min(7 dot matrix) 245 m/min(9 dot matrix) 138 m/min(12 dot matrix) 93 m/min(16 dot matrix) 37 m/min(24 dot matrix) 18 m/min(34 dot matrix) |
Operation interface | 10.1 inch color touch screen, graphic menu. |
Storage information | Unlimited storage of printing information (can be connected to external mobile memory) |
Printing content | Date, Time, Automatic date, Automatic validity period, Class number, Batch number, Serial number, Four groups of counters, Meter counting, Self-edited pattern, Variable barcode, Variable QR code, Anti-counterfeit code, Multiple languages, Multiple fonts. |
Bar code | EAN 8&13, Code 128 A,B &C EAN 128, Code 39, Code93, Interleaved 2 of 5 |
QR CODE (QR,DM) | 10x10, 12x12, 14x14, 16x16, 18x18, 20x20, 24x24, 34x34 |
Printing length | 1024 characters as standard (customizable) |
Input method | Pinyin input method, area code input method, multi-language input. |
Printing ink | Black, Blue, Red, Yellow, and Other Colors of Ink. |
Printing character height | 1-12mm (adjustable) |
Printing distance | 1-30mm (adjustable) |
Font widening | 1~9 times, can be widened for a single character. |
Font direction | Normal characters, Reverse characters, Inverted characters, Reversed characters Printing direction can be set independently for a single character. |
Font spacing | 1-8 times, can be edited point by point. |
Positive pressure air for nozzle | Optional |
Voltage | 85/265 VAC, 50/60 Hz |
Temperature | -10℃~45℃ 304 stainless steel case |
Humidity | 10-95% non-condensing |
Ink | 500mL / 750mL |

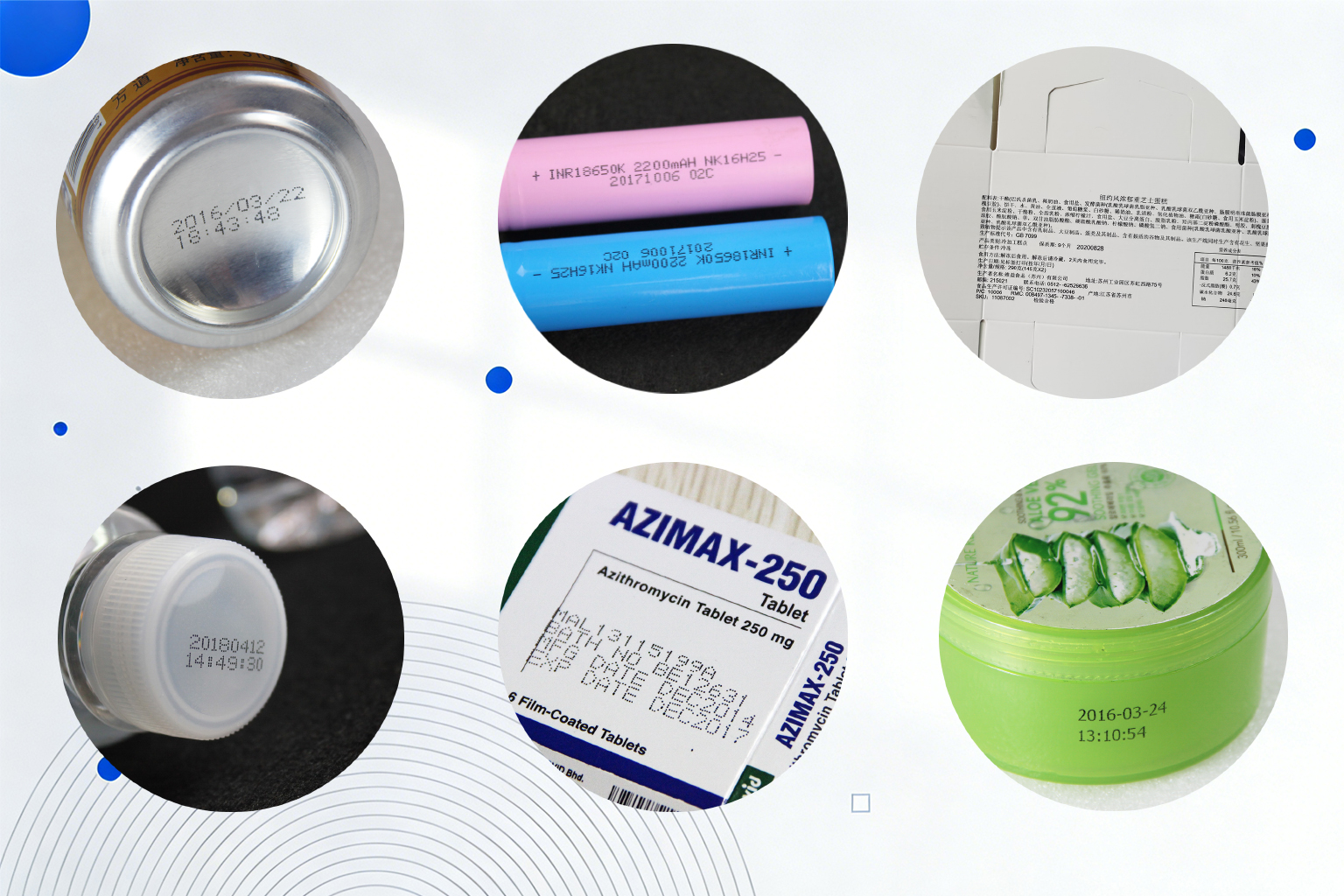

Naxjet S800 industrial CIJ printer is widely used across multiple industries for high-speed date coding, barcode printing, and product traceability on various packaging materials.
