Laser printer is within reach.
Simple integrated design ensures smooth integration
into your production line, intuitive user interface and
built-in wizard, which can significantly reduce operator
training and make you master it quickly.
High quality products,reasonable price Precise design and flexible use
German technology and excellent component design ensure a reliable and high-quality system that can handle various application scenarios.
Provide high quality at a reasonable price to make laser technology universal.

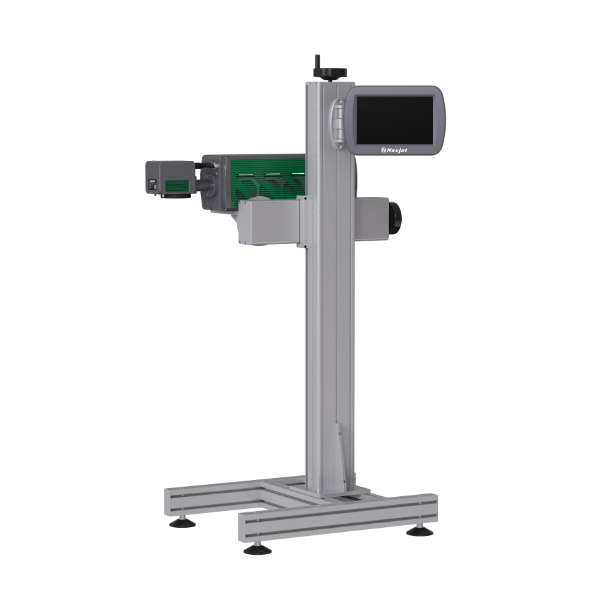

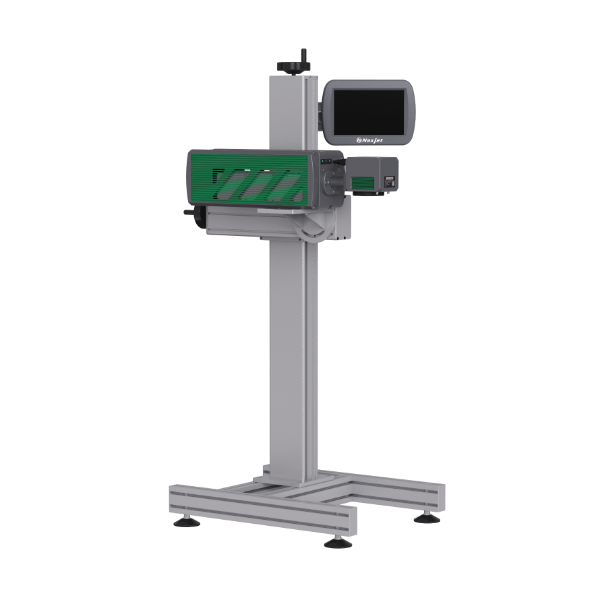

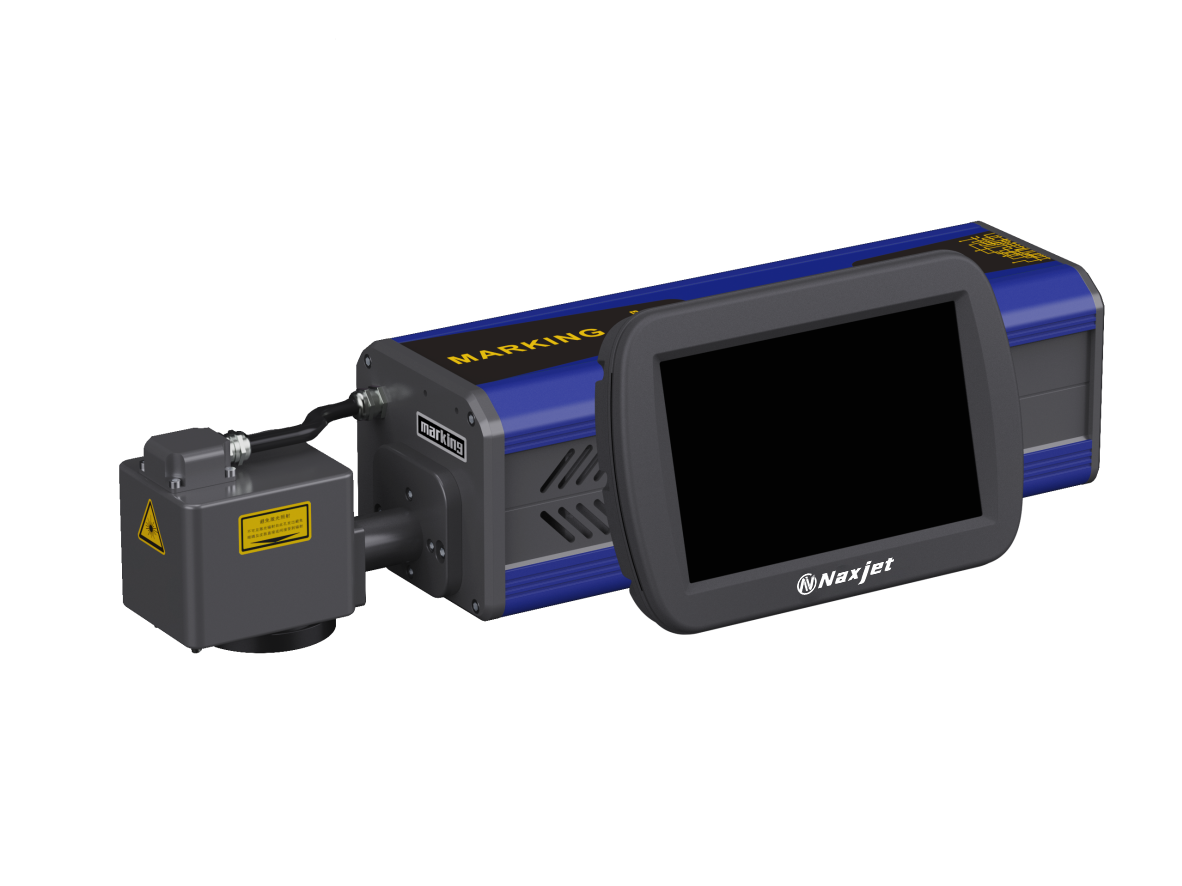

CO2 30 / 40 / 60W series specification / laser inkjet printerr
Provide high-quality and reliable laser system, which is deeply trusted by customers
in many countries / regions.

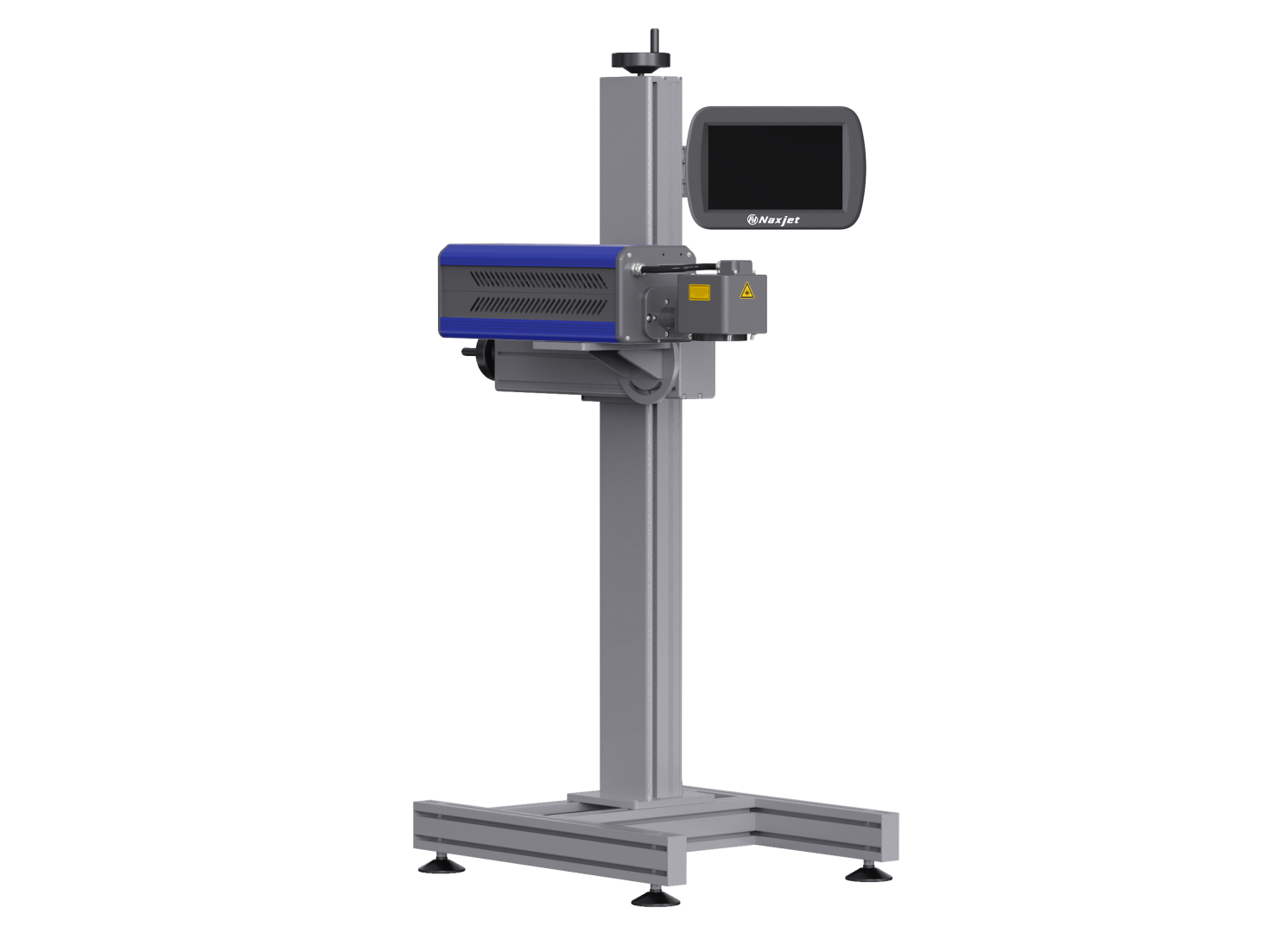

CO2 30 / 40 / 60W series specification / laser inkjet printerr
Carry out data communication through serial port or network port, and bring its own single machine and dual machine coding software.
With its own visual communication protocol, users can choose this function for seamless integration.
It can be linked to the host computer
through Ethernet to realize remote
operation in different places.
The overall protection grade of the controller reaches IP55.

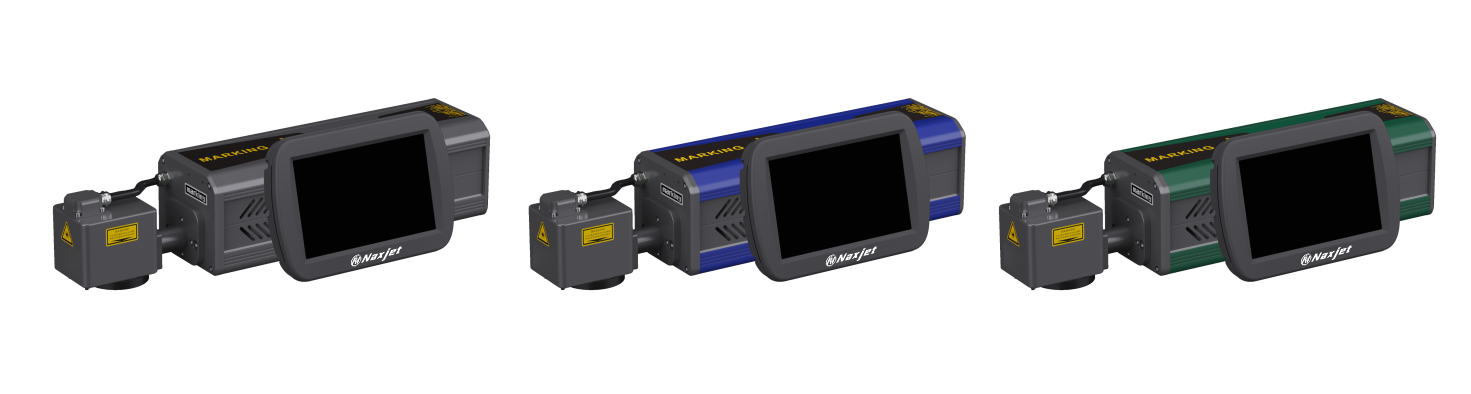

Available in gray, blue and green
◆ main technical parameters of UV series:
| project | Parametertable | CO2-30W | CO2-40W | CO2-60W |
| characteristic | Machine material | All aluminum sandblasting oxidation | ||
| Laser | The service life is more than20000-30000 hours | |||
| Laser wavelength | 1060nm | |||
| output power | ≥38W | ≥43W | ≥70W | |
| Marking speed | ≤12000mm/s | |||
| controller | 10.2 inch touch controller | |||
| Cooling system | Air cooling | |||
| parameter | Focus lens | 145mm | ||
| Minimum linewidth | 0.03mm | |||
| Repetitionaccuracy | 0.01mm | |||
| Marking range | 110mm×110mm(optinal) | |||
| Number of rows | Any line within the marking range | |||
| Production line speed | 0~130m/min (depending on the material) | |||
| Software | Multilingual | English, Spanish, German, Chinese, Russian, Arabic, etc | ||
| jurisdiction | Multi user management authority | |||
| operating system | Linuxsystem | |||
| Inkjet mode | Static, analog, encoder | |||
| Reserved signal | Start, print status, finish, fault | |||
| data protection | With power failure data protection energy | |||
| monitor | Provide overspeed alarm function | |||
| De crossing | Automatic removal of intersections | |||
| Coding software | Single and double machine code sending | |||
| Support type | typeface | Chinese and English, numbers, traditional, etc | ||
| file format | BMP/DXF/HPGL/JPEG/PLT | |||
| bar code | CODE39、CODE128、CODE126、QR | |||
| Servicing parameters | Power Supply | 220V/50HZ | ||
| Power consumption | 800W | |||
| Net weight of machine | 45kg | |||
| Overall dimension | nose：666mmX160mmX165mm | |||
| environment | requirement | External temperature0℃－45℃;humidity≤95 |
◆ quality standards implemented
| Serial number | name |
| GB 7247-87 | Radiation safety of laser products |
| GB10320-88 | Electrical safety of laser equipment and facilities |
| ISO9000-3 | International software standards |
| GB/T12123-89 | Sales packaging procedure |
| IEC 536 | Protection equipment against electric shock |
◆ main configuration list:
| number | Subsystemname | brand | model | quantity | Place of Origin |
| 1. | Laser | Beijing Dawei | 1060-30/40/60 | 1 | China -beijing |
| 2. | Galvanometer | Shenzhen-ZBTK | ZB2D10C1060 | 1 | China - Shenzhen |
| 3. | Field mirror | crystal lattice | JGZL1-1060-160-110 | 1 | China - Shenzhen |
| 4. | Power Supply | Taiwan Mingwei | S350-48W | 1 | Taiwan |
| 5. | software system | Shenyang baichuang | 10.2 External | 1 | China Shenyang |
| 6. | photoelectricity | Xinshe electric | FZ2-22N | 1 | China Zhejiang |
| 7. | Synchronizer | Changchun side | 38S6-2500 | 1 | China Changchun |
| 8. | focusing | Shenzhen-ZBTK | ZB2D10C1060 | 1 | China - Shenzhen |
| 9. | wave filter | YUNSANDA | CW2B-10A | 1 | Taiwan |
| 10. | Bracket | self-control | SY02415-1500 | 1 | China |
◆ attached accessories and relevant data:
| number | Subsystemname | quantity | remarks |
| 1 | Laser machine equipment | One | Random accessories |
| 2 | Control system | One | Random accessories |
| 3 | Photoelectric inspection switch | One | Random accessories |
| 4 | Synchronizer | One | Random accessories |
| 5 | Flight support | One | Random accessories |
| 6 | Windows Debugging Tools | One | Random accessories |
| 7 | Mechanical and circuit diagram | One each | Random accessories |
| 8 | instructions | One each | Random accessories |

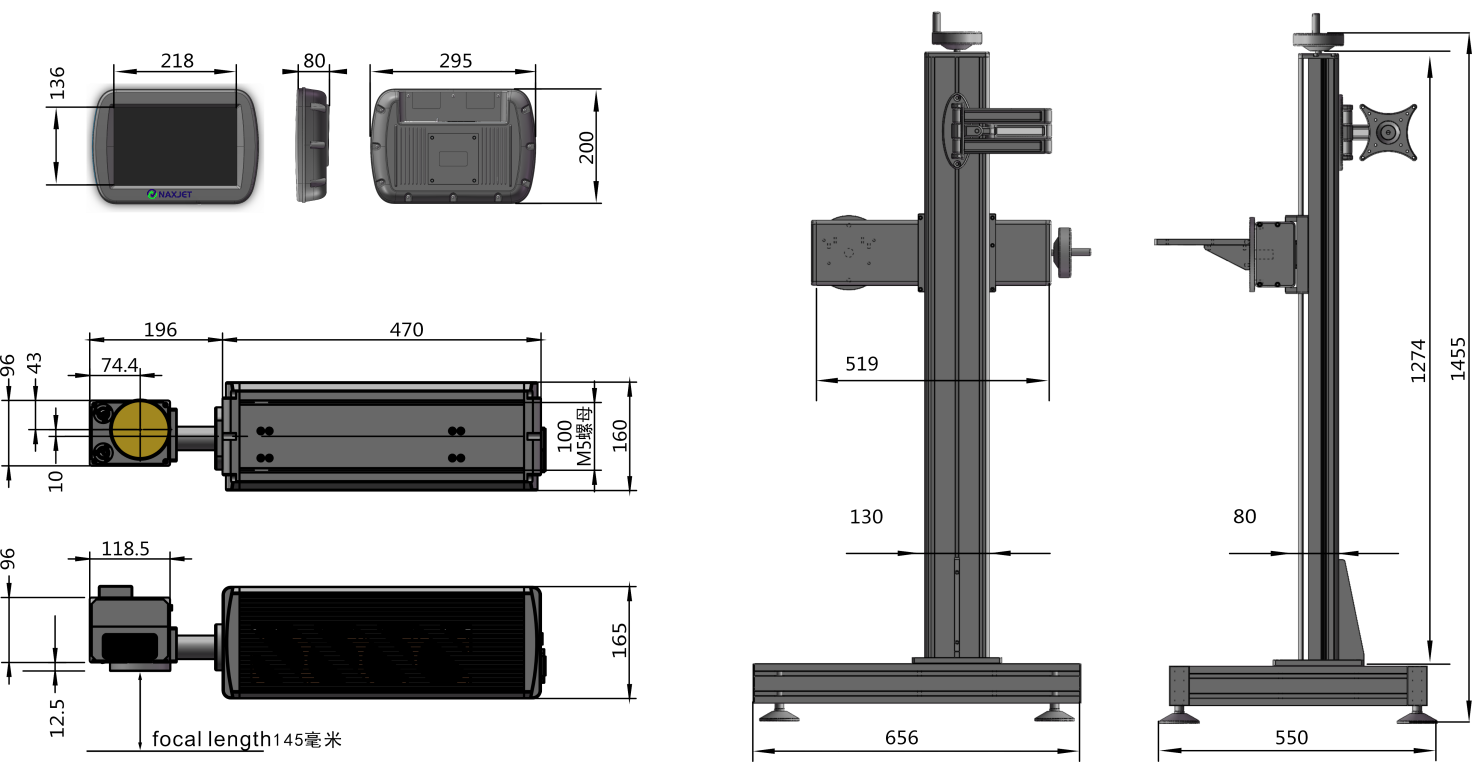

◆ Overall dimension:
Take peace of mind as the standard
Concise - the large-scale "WYSIWYG" color touch screen provides intuitive icons
and shortcuts to ensure user-friendly operation. And other security functions
are fast and easy to use, and information loading and Ethernet access can
be easily completed through the standard USB port.
It can meet your development needs and easily update your marking machine
power without changing the whole system. High flexibility, laser scheme can
process various workpieces (brittle, soft, hard, surface removed)
-30W: economic scheme, matched with conventional th production line.
-40W: multi purpose high-performance solution for high-speed th production line.
-60W: powerful scheme, suitable for applications requiring high speed and depth. It can be used for engraving.
