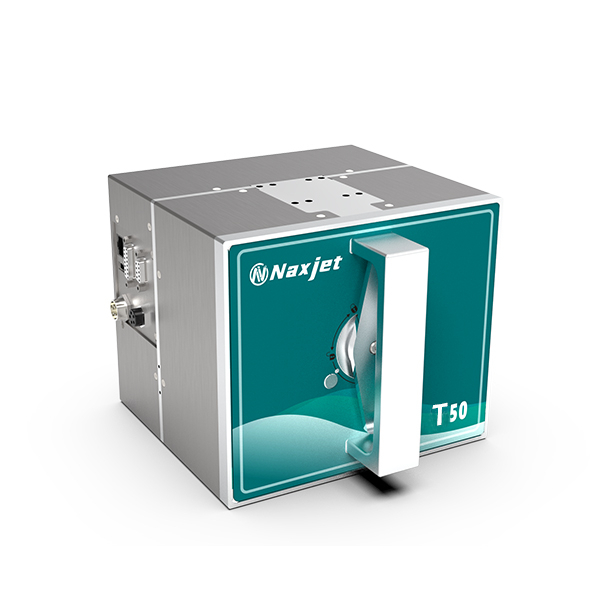

NAXJET T30/T50 Thermal transfer machine

Full line of thermal transfer overprinters for printing variable content on flexible packaging and labels

Details

Whether marking simple date and time codes, complex regulatory codes, ingredient lists, or marketing information, Naxjet TTO printers help keep your production lines running at peak performance. Print high-resolution images on flexible packaging, film, and labels while minimizing the downtime and costs associated with production changeovers.



High Performance:

Naxjet T32 printer utilized a 32mm print head, it offers a bigger print head and a powerful print firmware with many useful features to en users in the foods, pharmaceutical, seeds, chemical, insecticides, etc..


This printer most economical printing the 32mm range. it reduces initial investment cost and with a high utilization rate of the

Ribbon, it also help reduces the overall running cost. Together with it stable and reliable high quality print, it achieves a high performance to price ratio.


Large Print area:

Printing area up to 32X180mm, suitable for the printing of ingredients and nutritional information of the products to be packed thus reducing the stocking and printing cost of packing substrate.


Stable and reliable high quality print:

300DPI print head used in the Naxjet T series printer, ensure high quality print. It's able to print complex text and logo on a variety of packing film substrate with print quality close to press printing.



Specification


Parameter

Specification

Print Area

321 × 180 mm

Print Density

300 DPI / 12 dots/mm

Printing Speed

1–30 mm/s (varies according to print size)

Ribbon Size

55 mm × 600 m

Ribbon Gap

0.5 mm, user adjustable

Software Interface

RS232 Industrial Port / USB Transfer

Hardware Interface

Input: Print Trigger, EncoderOutput: Print, Warning, Fault

User Interface

Job creation without PC; Self-diagnostic; Warning & fault information; 3.5-inch touch screen; 2 × USB input

Print Functions

Image rotation; Font selection; Logo printing; Chinese printing; Serialization; Customized printing; Real-time date; Expiry date; PC control

Weight

6.5 kg

Power Supply

100–120 VAC or 220–240 VAC

Air Supply

Max. 6.0 bar compressed air or non-air

Working Environment

Temperature: 0–40°CHumidity: 0–90% RH


Printing Effects
